SINO TTL RoHS 2 Axis Digital Readout SDS2MS For Lathe , Multifunctional DRO Measuring Systems with linear encoder

SINO TTL RoHS 2 Axis Digital Readout SDS2MS For Lathe , Multifunctional DRO Measuring Systems with linear encoder

Company Profile:Guangzhou SINO International Trade Co., Ltd.
Overview: This company is a subsidiary of the SINO group since 1989, specializing in advanced high-precision measuring & positioning tools,
including digital readout systems, linear grating scales, magnetic encoders, and angle encoders. It has been certified by IS09001, CE, and RoHS certificates.
They are active exporters to Europe, North America, South America & Southeast Asian.

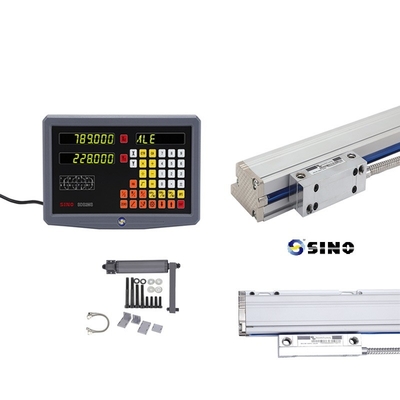

This digital readout system is designed specifically for the positioning of a 2-axis lathe machine.

The SDS2MS DRO should be mounted on the lathe's electrical box using a 90-degree rack.

The KA-300 linear grating scale is intended for the Z-axis, while the KA-500 linear grating scale is intended for the X-axis.

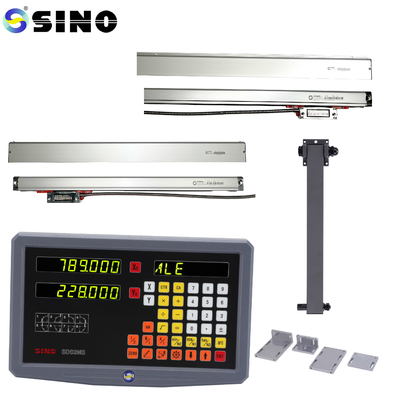

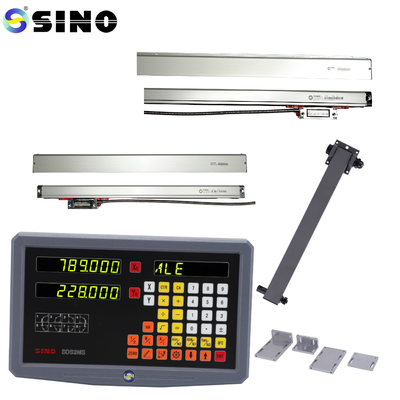

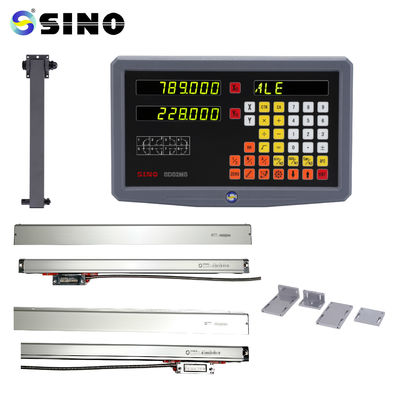

Package list:

Functions for lathe machine:

1. Radius / Diameter Conversion
2. Tool Diameter Compensation

Detail Information:

Pin Description:

All linear scales were tested before delivery. Here is a sample of a scale's test report.

It's a sample that a DRO is mounting on the electric box of a lathe:

It's a sample that KA-500 linear encoder on axis X of lathe:

It's a sample that KA-300 linear encoder on axis Z of lathe:
